BIOMASS-FIRED CHAIN GRATE
THERMAL OIL HEATER
12 MILLION Kcal/H

Wide Fuel Compatibility:Compatible with wood chips, olive husks, rice husks, industrial wood waste, and other types of solid biomass.

Low Emissions:NOX, SO2 and particleare far below the most stringent standards.

Extremely High Thermal Efficiency:The unique structural designand material usage ensure high thermal efficiency.

Advanced Control System:Fully automatic precision control of temperature and pressure for safety.

Convenient Inspection and Maintenance:The unique structural design facilitates internal inspection and maintenance.

Assembly Structure Saves Installation Time and Cost:The boiler adopts a modular structure, which is convenient for installation and short installation period.

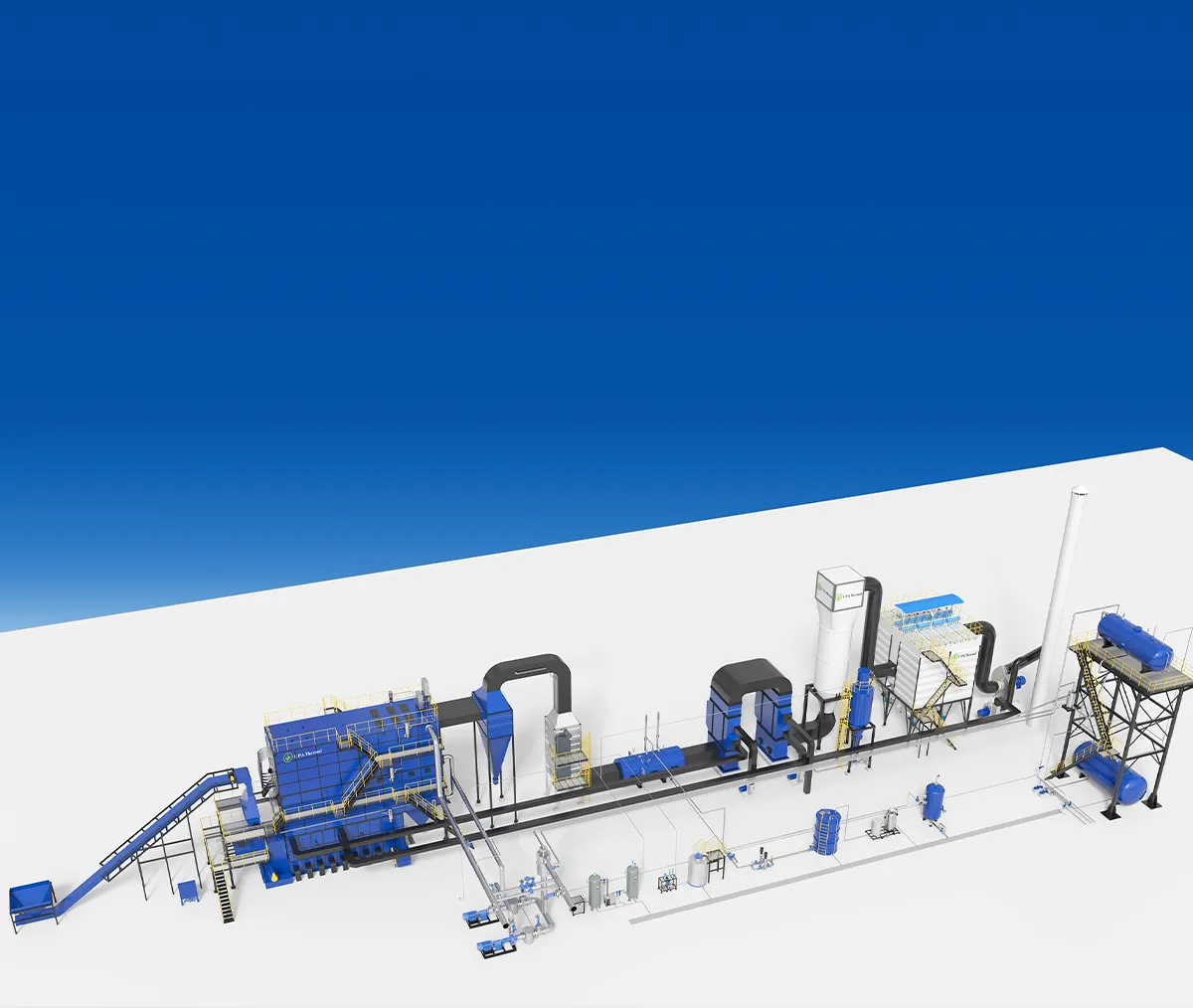

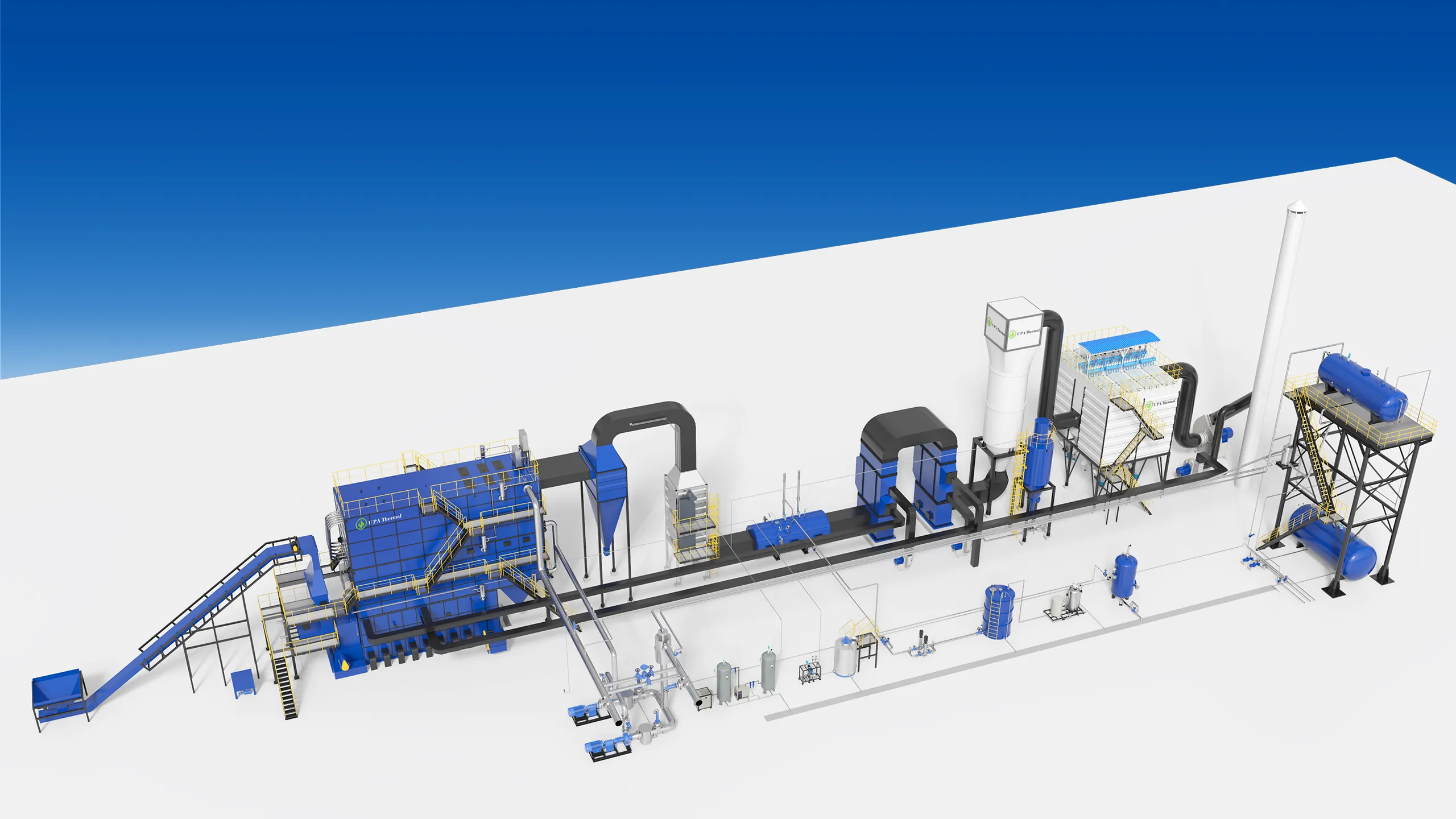

EQUIPMENT LAYOUT

Biomass-fired Chain Grate Thermal Oil Heater 12 Million Kcal/H


FOW CHART

Biomass-fired Chain Grate Thermal Oil Heater 12 Million Kcal/H

DETAILED PARAMETERS

Biomass-fired Chain Grate Thermal Oil Heater 12 Million Kcal/H

Model

YLW-4100SII

YLW-7000SII

YLW-10500SII

YLW-14000SII

YLW-19000SII

YLW-25000SII

Heating capacity × 104 (Kcal/h)

350

600

900

1200

1600

2200

Thermal power (MW)

4.1

7

10.5

14

19

25

Design pressure (MPa)

1.1

Maximum operating temperature (℃)

320

Medium circulation volume (m³/h)

260

520

800

1000

1000

1300

Design efficiency (%)

85.5

88

88

88

88

88

Main pipe diameter (mm)

DN200

DN300

DN350

DN400

DN400

2×DN400

Applicable fuel

Biomass gas, low calorific value 1280Kcal/h

Burner type

Negative pressure combustion

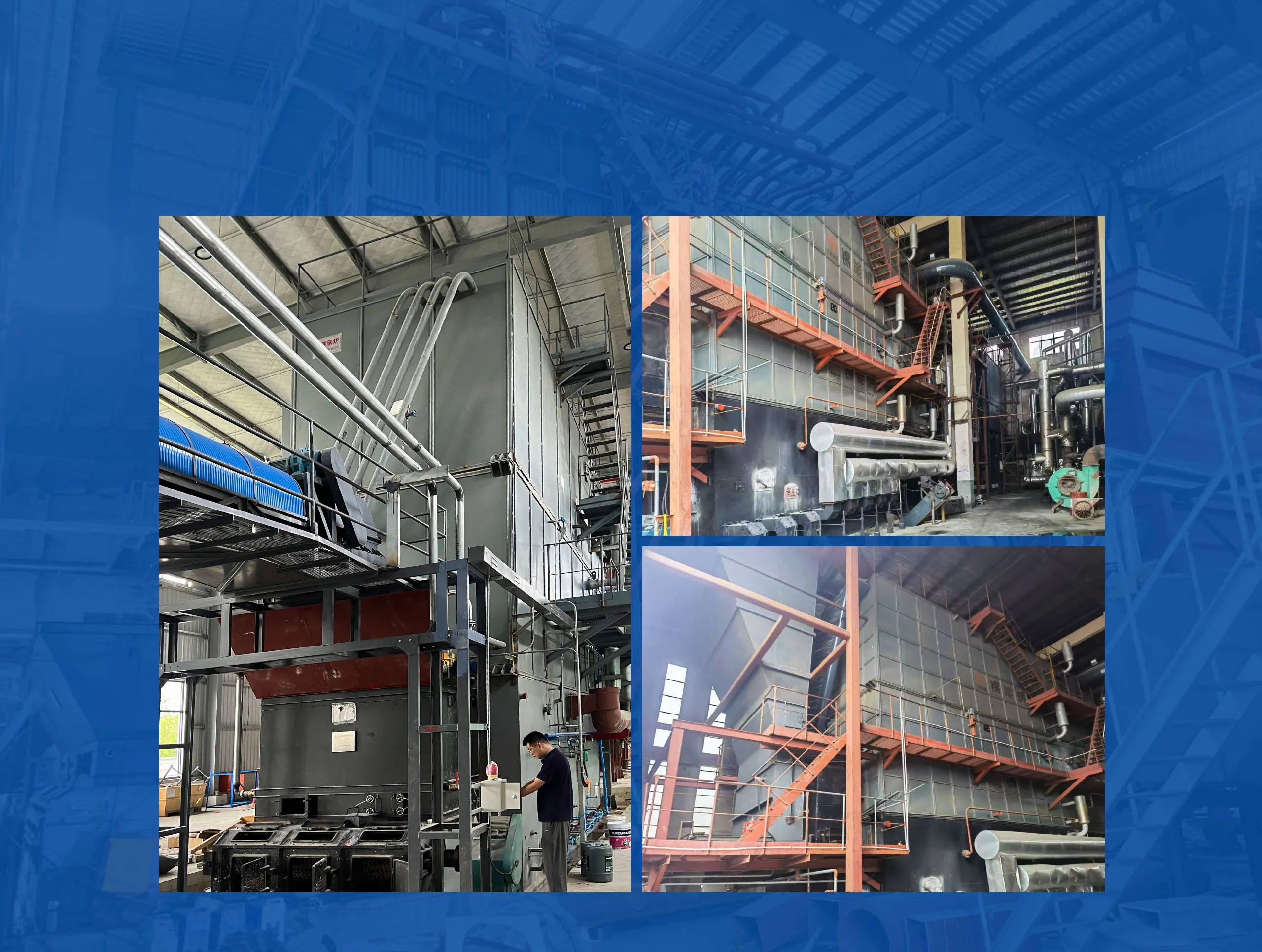

CASE SHOWCASE

Biomass-fired Chain Grate Thermal Oil Heater 12 Million Kcal/H
